An orthographic projection (or orthogonal projection) is a two-dimensional drawing used to represent a three dimensional object.


An orthographic view represents the exact shape of an object seen from one side at a time as you look perpendicularly at the object (without showing depth of the object). An object is usually depicted by three orthographic views: top, front, and right side.

blocks

We will be using "stacking and locking blocks" to illustrate the 3-dimensional objects.  These blocks are 1 inch cubes.

In the examples below, the "orthographic projections" shows views of the top, the front, and the right side.
The "3D Stack" shows a possible three-dimensional figure that could be created from the the orthographic projections. The picture shows a photographic view of the solid formed using stacking blocks.

Orthographic Projections

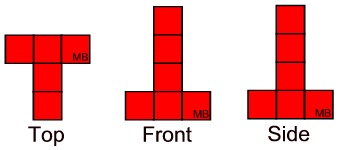

redblockO
redblock3D
redcubepic2



Orthographic Projections

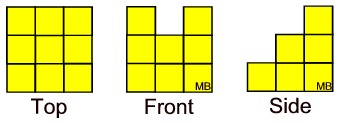

yellowblockO
yellowblock3D
yellowcubepic



Orthographic Projections

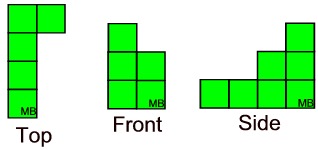

greenblockO
greenblock3D
greencubepic



Orthographic Projections

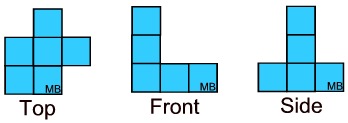

blueblockO
blueblock3D
bluecubepic
