When a transversal intersects two or more lines in the same plane, a series of angles are formed. Certain pairs of angles are given specific "names" based upon their locations in relation to the lines. These specific names may be used whether the lines involved are parallel or not parallel.

parallelhelmet1
"Names" given to pairs of angles:

• alternate interior angles

• alternate exterior angles

• corresponding angles

• interior angles on the same side of the transversal

Let's examine these pairs of angles in relation to parallel lines:

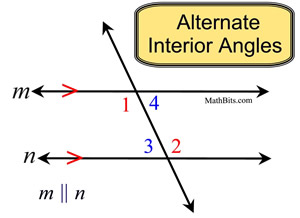

Alternate Interior Angles:
The word "alternate" means "alternating sides" of the transversal.
This name clearly describes the "location" of these angles.
When the lines are parallel,
the measures are
equal.
pointhelment2
altint
∠1
and ∠2 are alternate interior angles
∠3 and ∠4 are alternate interior angles

Alternate interior angles are "interior" (between the parallel lines), and they "alternate" sides of the transversal. Notice that they are not adjacent angles (next to one another sharing a vertex).

When the lines are parallel,
the alternate interior angles
are equal in measure.
m∠1 = m∠2 and m∠3 = m∠4

hint
If you draw a Z on the diagram, the alternate interior angles can be found in the corners of the Z. The Z may also be backward:z.
z1             Z2a

Theorem
If two parallel lines are cut by a transversal, the alternate interior angles are congruent.

Theorem
Converse
If two lines are cut by a transversal and the alternate interior angles are congruent, the lines are parallel.

dividerdash



parallelhelment4a

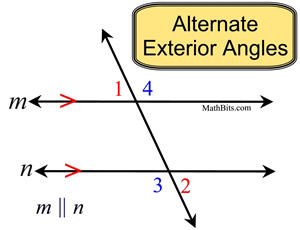

Alternate Exterior Angles:
The word "alternate" means "alternating sides" of the transversal.
The name clearly describes the "location" of these angles.
When the lines are parallel,
the measures are equal.
altint
∠1
and ∠2 are alternate exterior angles
∠3 and ∠4 are alternate exterior angles

Alternate exterior angles are "exterior" (outside the parallel lines), and they "alternate" sides of the transversal. Notice that, like the alternate interior angles, these angles are not adjacent.

When the lines are parallel,
the alternate exterior angles
are equal in measure.
m∠1 = m∠2 and m∠3 = m∠4


Theorem
If two parallel lines are cut by a transversal, the alternate exterior angles are congruent.

Theorem
Converse
If two lines are cut by a transversal and the alternate exterior angles are congruent, the lines are parallel.

dividerdash

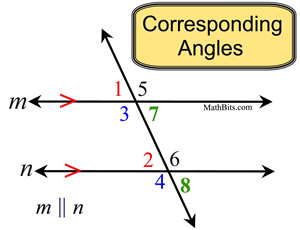

Corresponding Angles:
The name does not clearly describe the "location" of these angles. The angles are on the SAME SIDE of the transversal, one INTERIOR and one EXTERIOR, but not adjacent.
The angles lie on the same side of the transversal in "corresponding" positions.
When the lines are parallel,
the measures are
equal.
parallelhelmet5
corresangles
∠1
and ∠2 are corresponding angles
∠3 and ∠4 are corresponding angles
∠5 and ∠6 are corresponding angles
∠7 and ∠8 are corresponding angles

If you copy one of the corresponding angles and you translate it along the transversal, it will coincide with the other corresponding angle. For example, slide ∠ 1 down the transversal and it will coincide with ∠2.

When the lines are parallel,
the corresponding angles
are equal in measure.
m∠1 = m∠2 and m∠3 = m∠4
m∠5 = m∠6 and m∠7 = m∠8

hint
If you draw a F on the diagram, the corresponding angles can be found in the corners of the F. The F may also be backward and/or upside-down: F.
  Fdiagram           f2

Theorem
If two parallel lines are cut by a transversal, the corresponding angles are congruent.

Theorem
Converse
If two lines are cut by a transversal and the corresponding angles are congruent, the lines are parallel.

dividerdash



parallelhelmet7

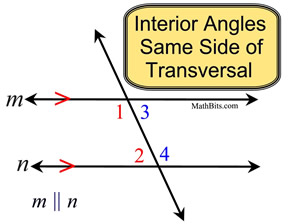

Interior Angles on the Same Side of the Transversal:
The name is a description of the "location" of the these angles.
When the lines are parallel,
the measures are
supplementary.
interiorangles
∠1
and ∠2 are interior angles on the same side of transversal
∠3 and ∠4 are interior angles on the same side of transversal

These angles are located exactly as their name describes. They are "interior" (between the parallel lines), and they are on the same side of the transversal.

When the lines are parallel,
the interior angles on the same side of the transversal are supplementary.
m∠1 + m∠2 = 180
m∠3 + m∠4 = 180


Theorem
If two parallel lines are cut by a transversal, the interior angles on the same side of the transversal are supplementary.

Theorem
Converse
If two lines are cut by a transversal and the interior angles on the same side of the transversal are supplementary, the lines are parallel.

dividerdash


In addition to the 4 pairs of named angles that are used when working with parallel lines (listed above), there are also some pairs of "old friends" that are also working in parallel lines.

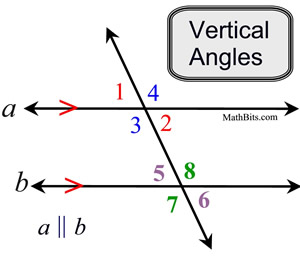

Vertical Angles:
When straight lines intersect, vertical angles appear.
Vertical angles are ALWAYS equal in measure,
whether the lines are parallel or not.

pointhelmet9
verticalangles

There are 4 sets of vertical angles in this diagram!

∠1 and ∠2
∠3 and ∠4
∠5 and ∠6
∠7 and ∠8

Remember: the lines need not be parallel to have vertical angles of equal measure.


Theorem
Vertical angles are congruent.

dividerdash



pointguy10

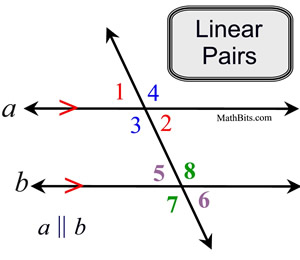

Linear Pair Angles:
A linear pair are two adjacent angles forming a straight line.
Angles forming a linear pair are
ALWAYS supplementary.
verticalangles
Since a straight angle contains 180º, the two angles forming a linear pair also contain 180º when their measures are added (making them supplementary).
m∠1 + m∠4 = 180
m∠1 + m∠3 = 180
m∠2 + m∠4 = 180
m∠2 + m∠3 = 180
m∠5 + m∠8 = 180
m∠5 + m∠7 = 180
m∠6 + m∠8 = 180
m∠6 + m∠7 = 180

Theorem
If two angles form a linear pair, they are supplementary.
